IslandWorks Turbo Intake Conversion Kit

Product Overview:

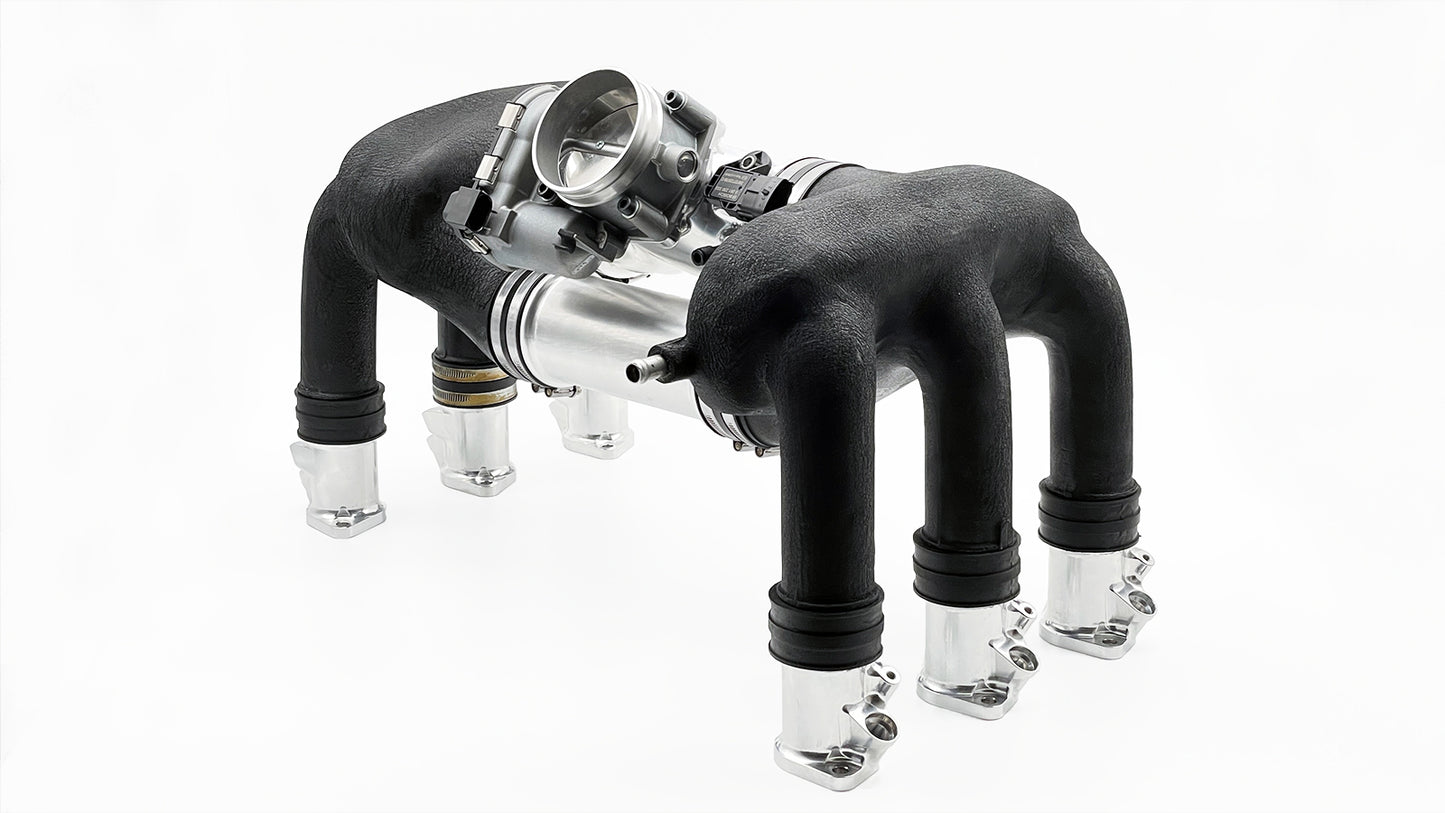

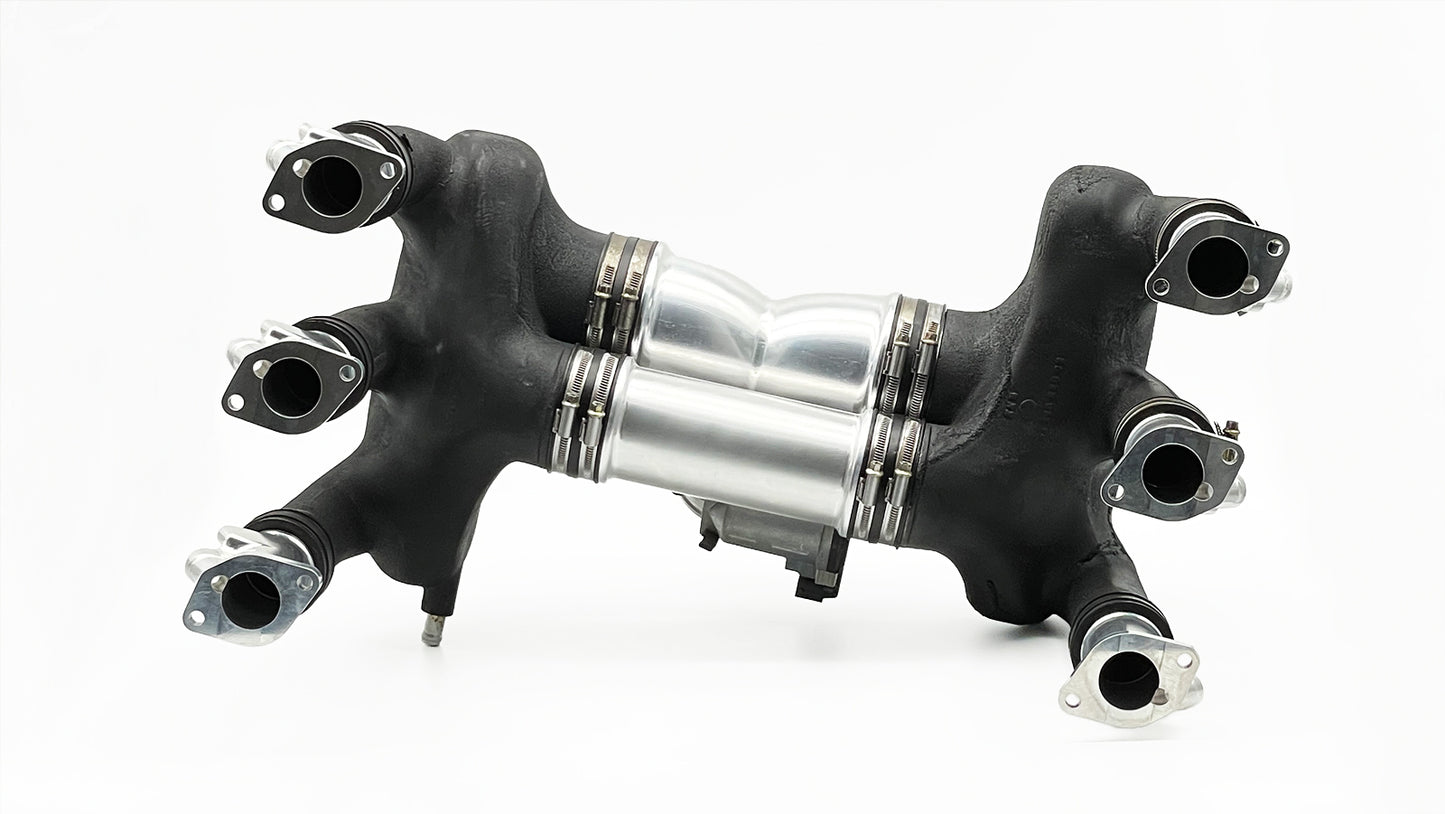

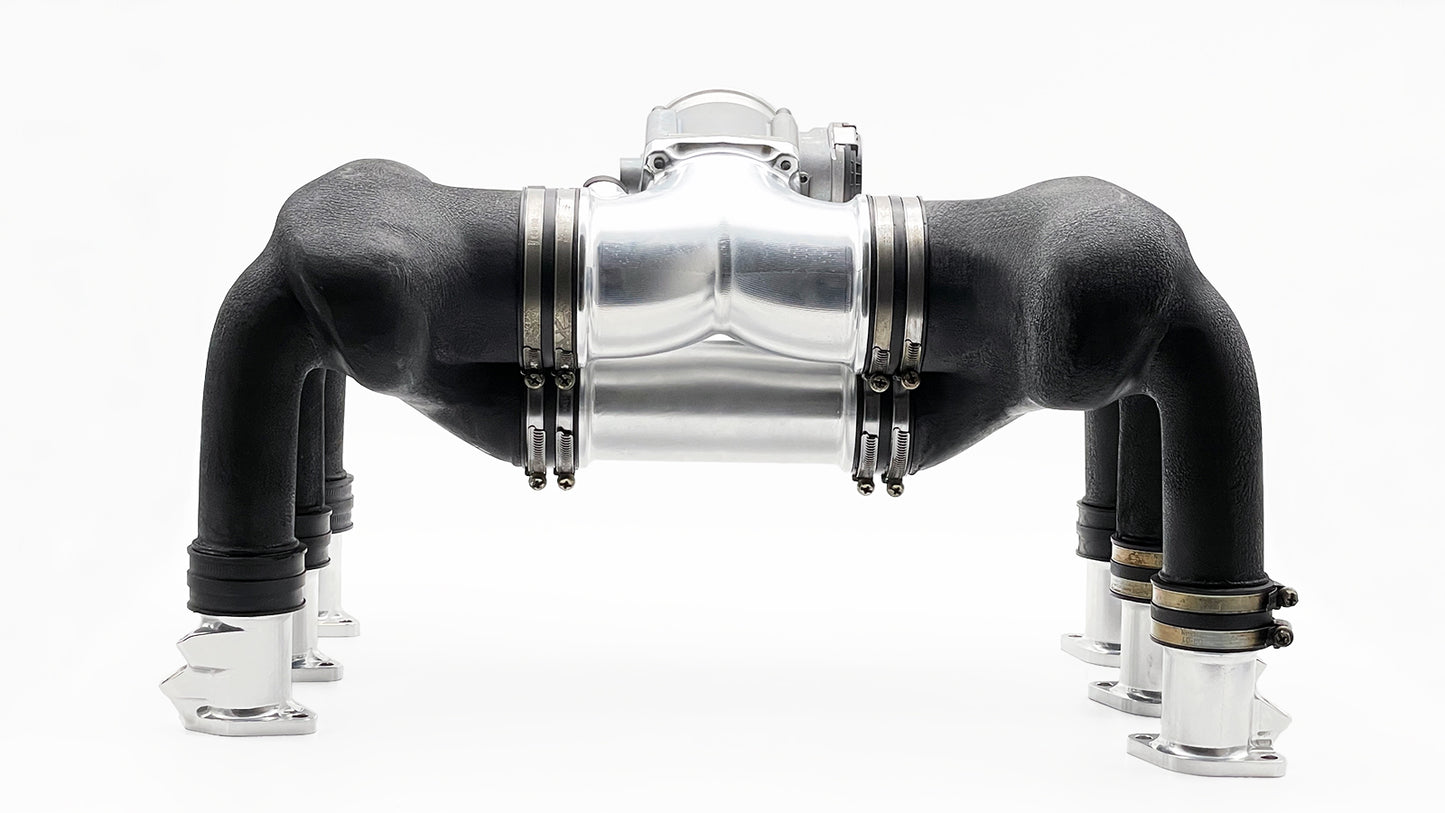

Conversion kit for the Porsche turbo intake to become a DBW (Drive by wire) intake based 74mm original Bosch throttle body (Sometimes referred to as 76mm) specifically executed all in CNC milled billet aluminum.

This is sold either with the intention to convert a Porsche 964/993 engine or to adapt and convert a 964 intake onto a G-model car (That sounds fun!).

The kit includes the following parts:

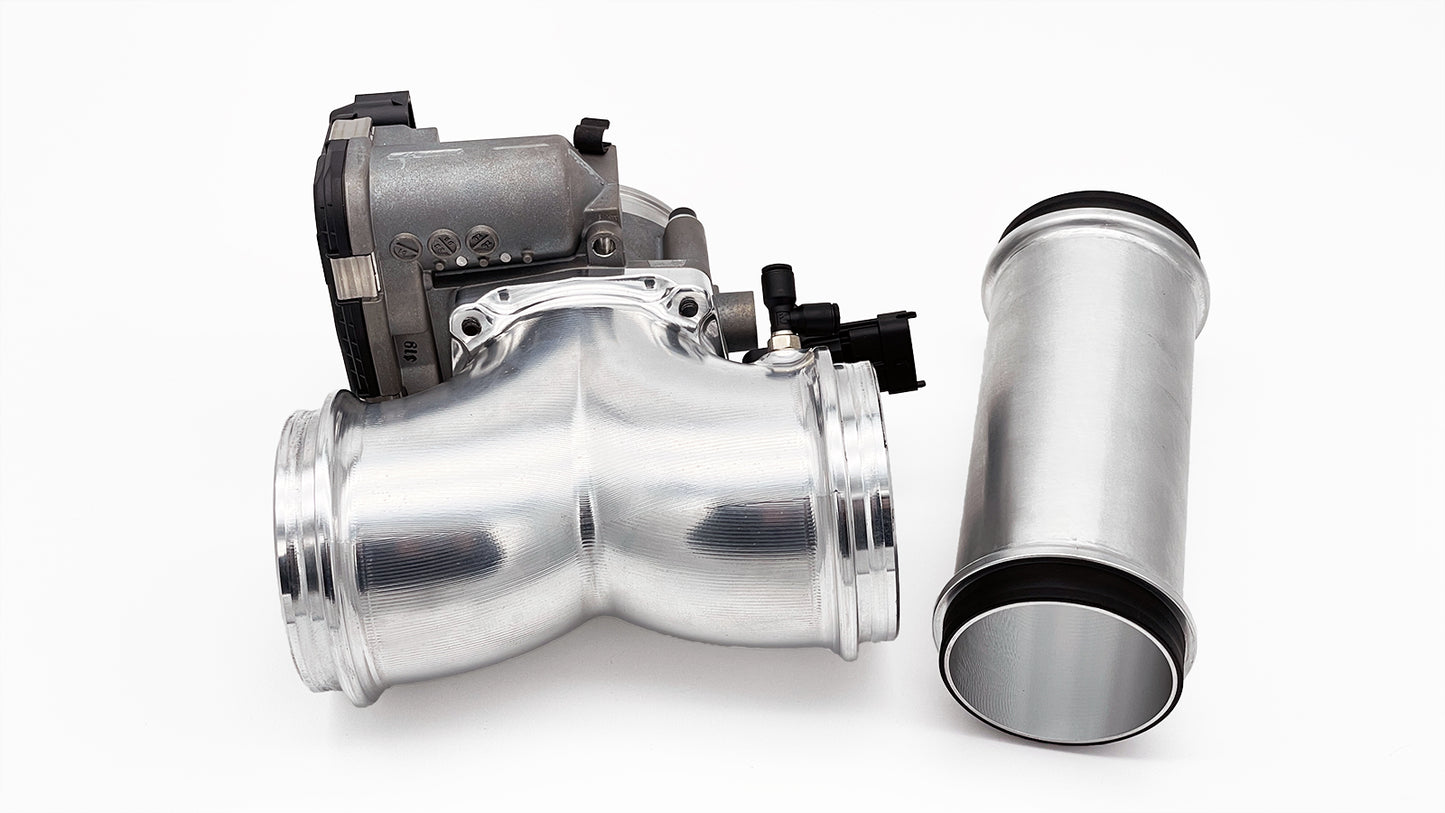

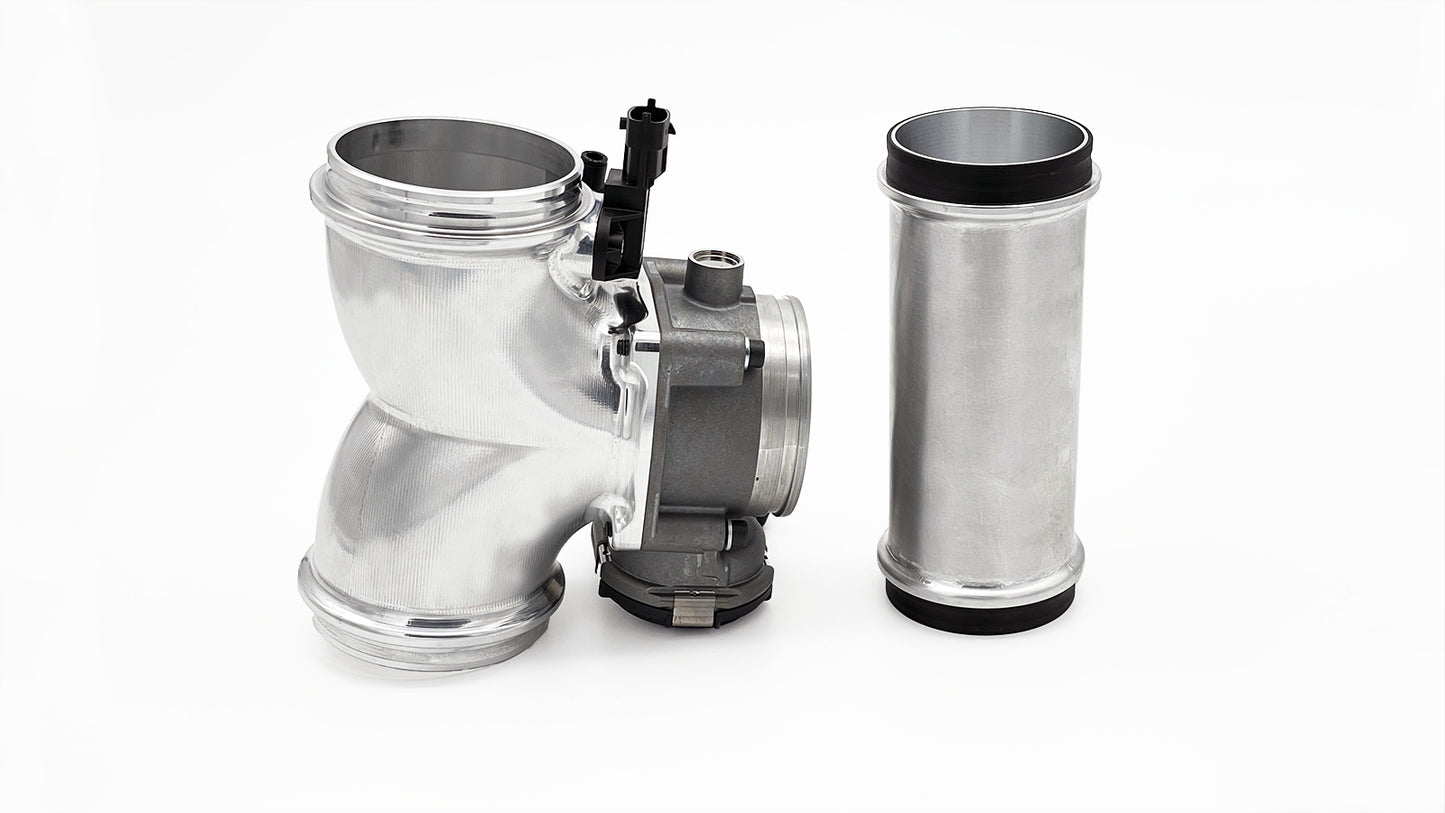

• Throttle body runner for 74mm throttle body in aluminum
• Vacuum port on throttle body runner

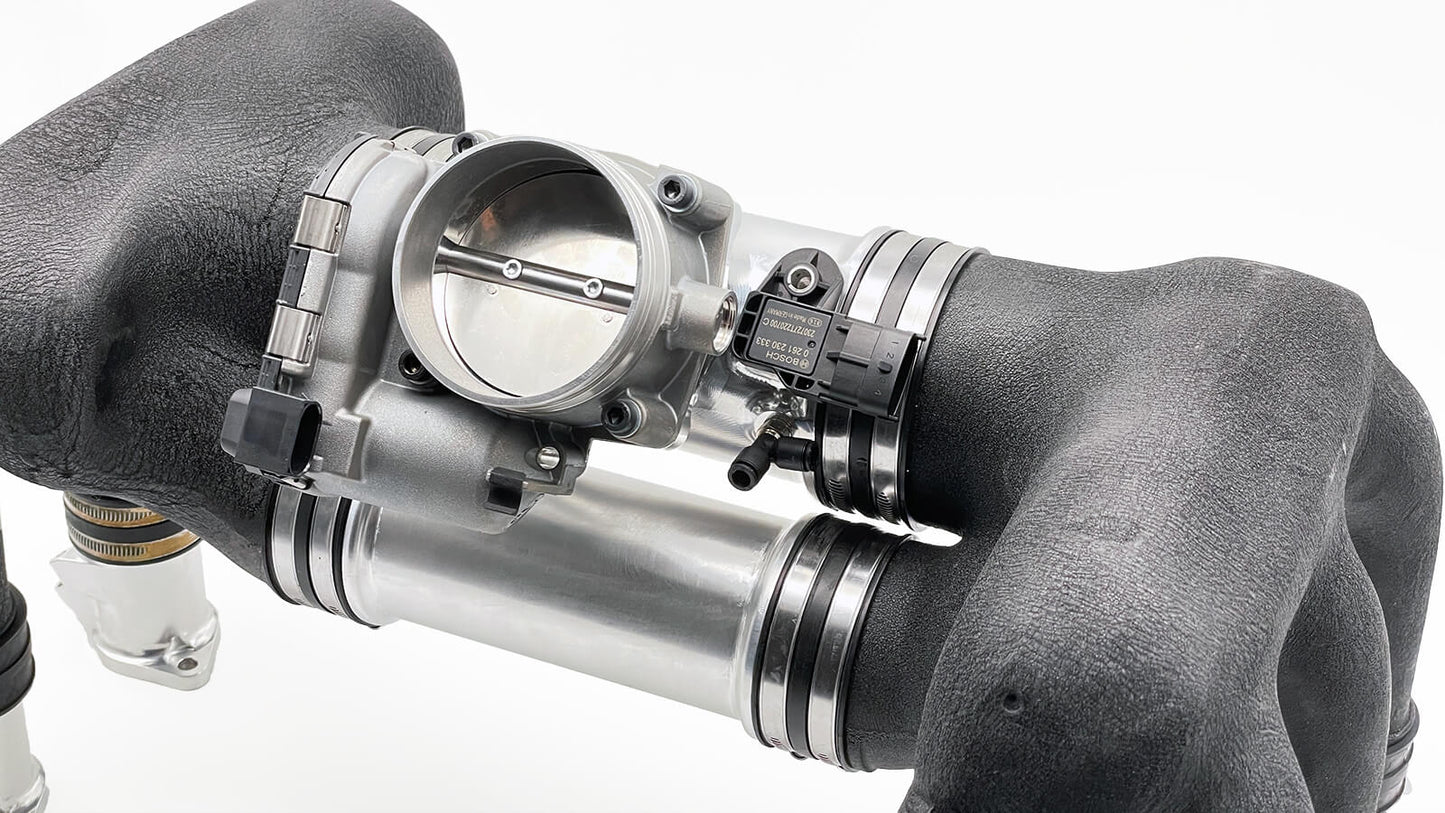

• Original Bosch electronic throttle body
• Original Bosch MAP-T-sensor

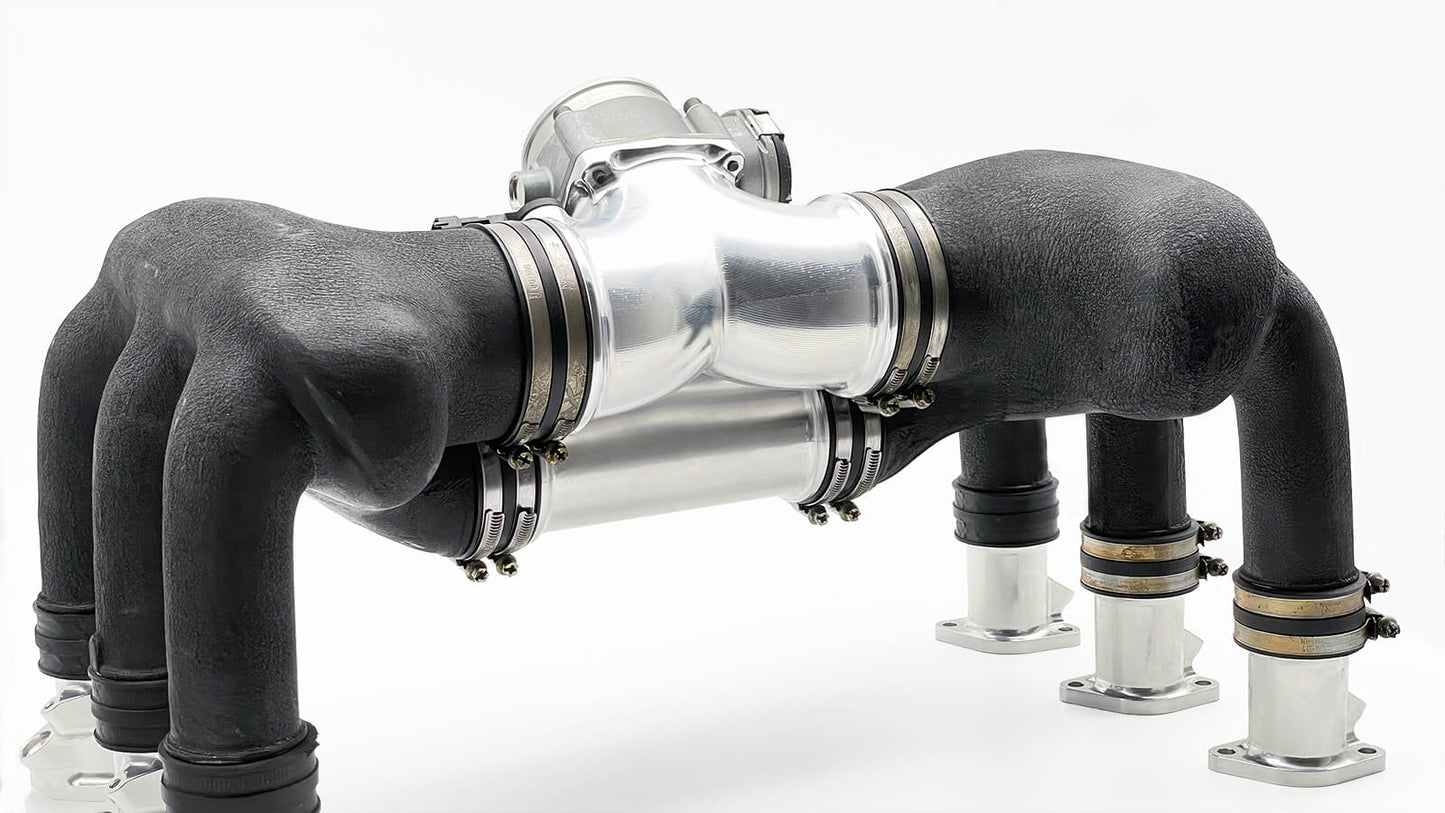

• Connecting pipe out of aluminum replacing the resonance tube

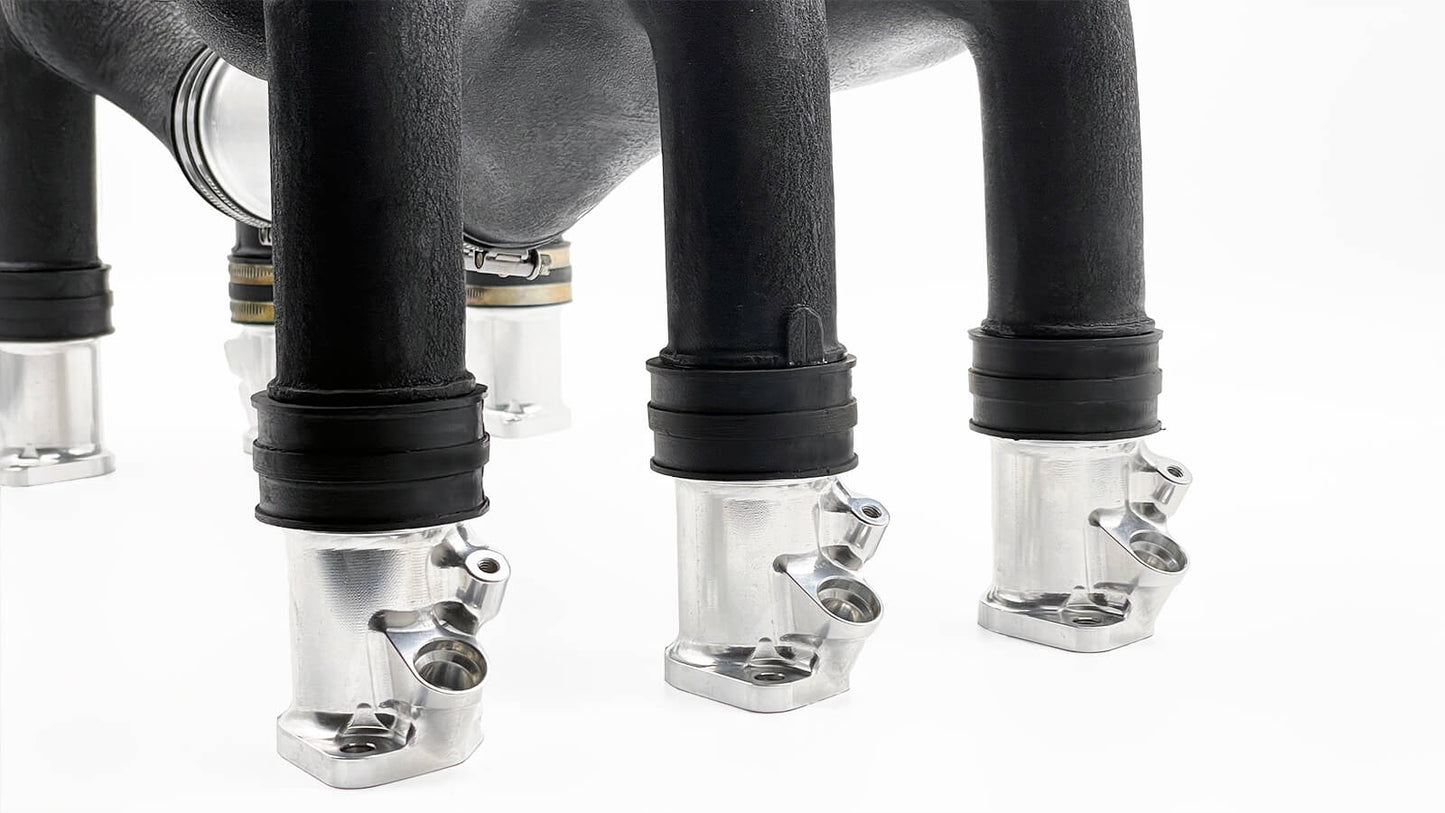

Optional intake runners for the Porsche 911 G-model engine made out of billet aluminium, 3D milled in a 5-axis machine. The port diameter indicated in the options is the diameter of the port in the cylinder head. Please note that these are the 2-bolt designs. The 3-bolt design for the 964 type engine is also available as a separate product in the shop: 964/993 Standard Billet Intake Runners and 964/993 to GT3 Billet Intake Runners.

The following parts will be reused from your original 964 intake:

• Rubber boots and clamps
• The aluminum plenum

Note: the aluminum or plastic intake plenum is not included in the kit and neither are any of the items specifically listed as excluded above.

See more information in YouTube episode:

Modern Meets Classic - Engineering a Custom Intake for Porsche 911 Targa

Please email us at info@islandworks.one if you want to know more.
