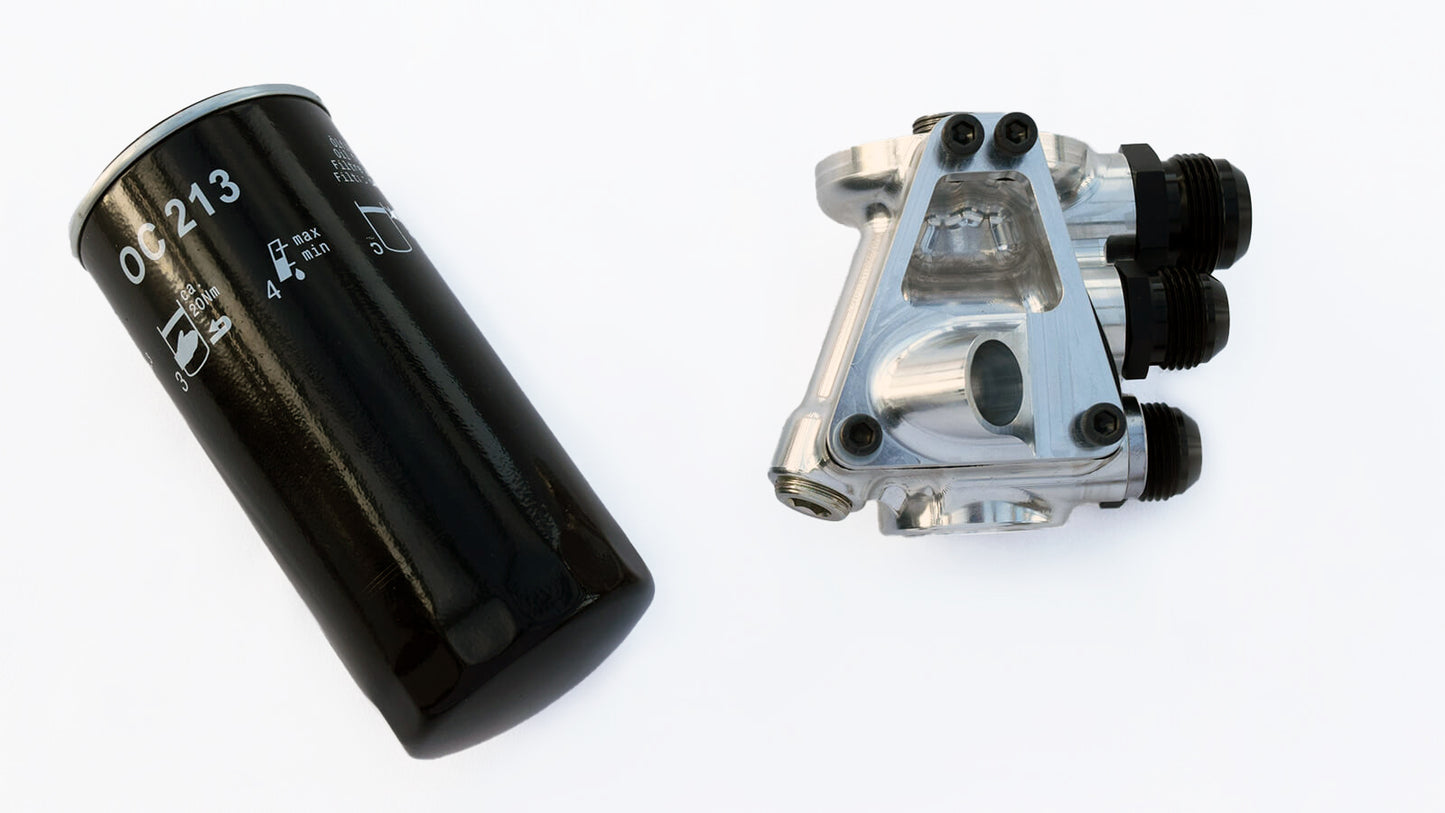

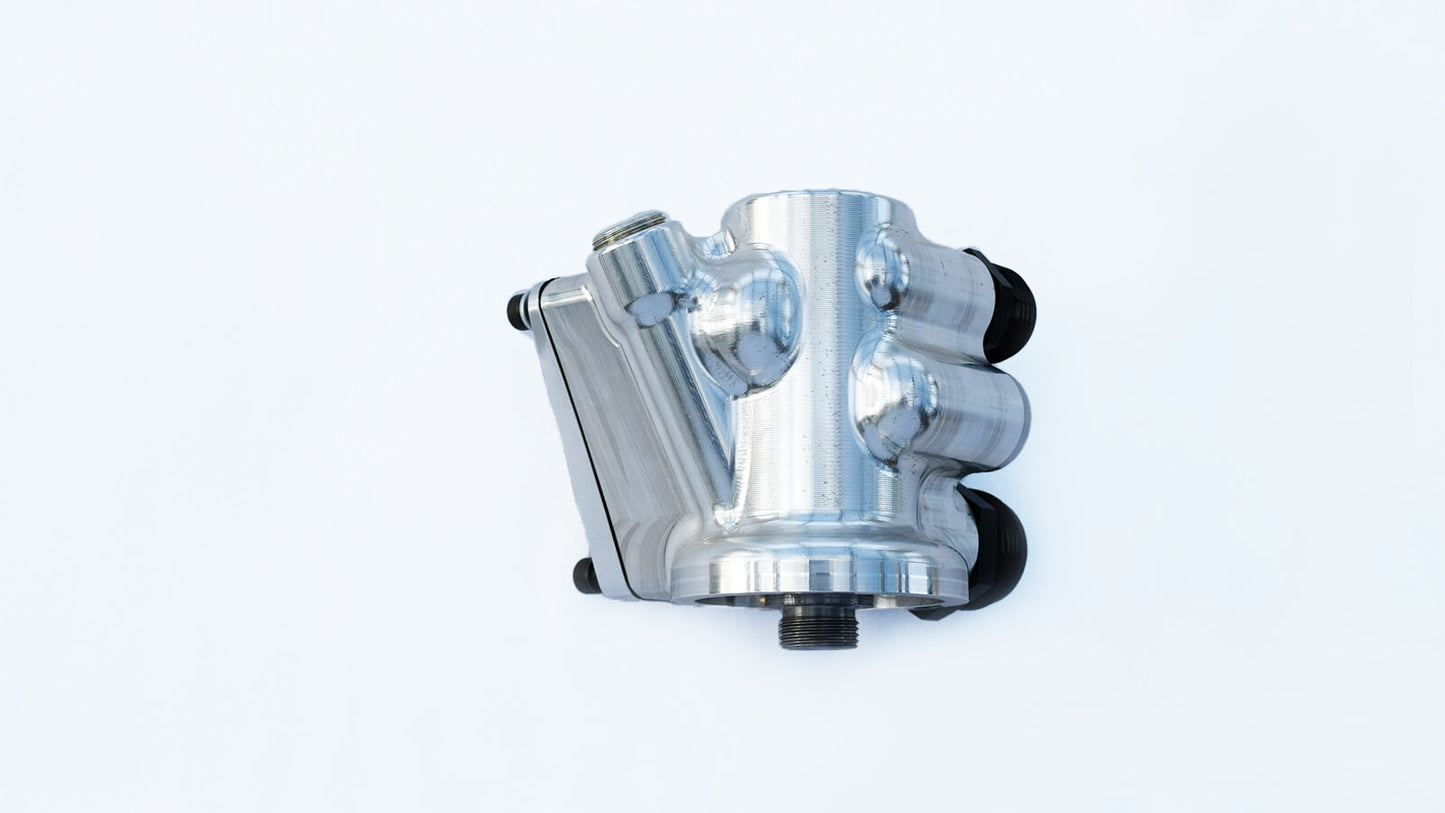

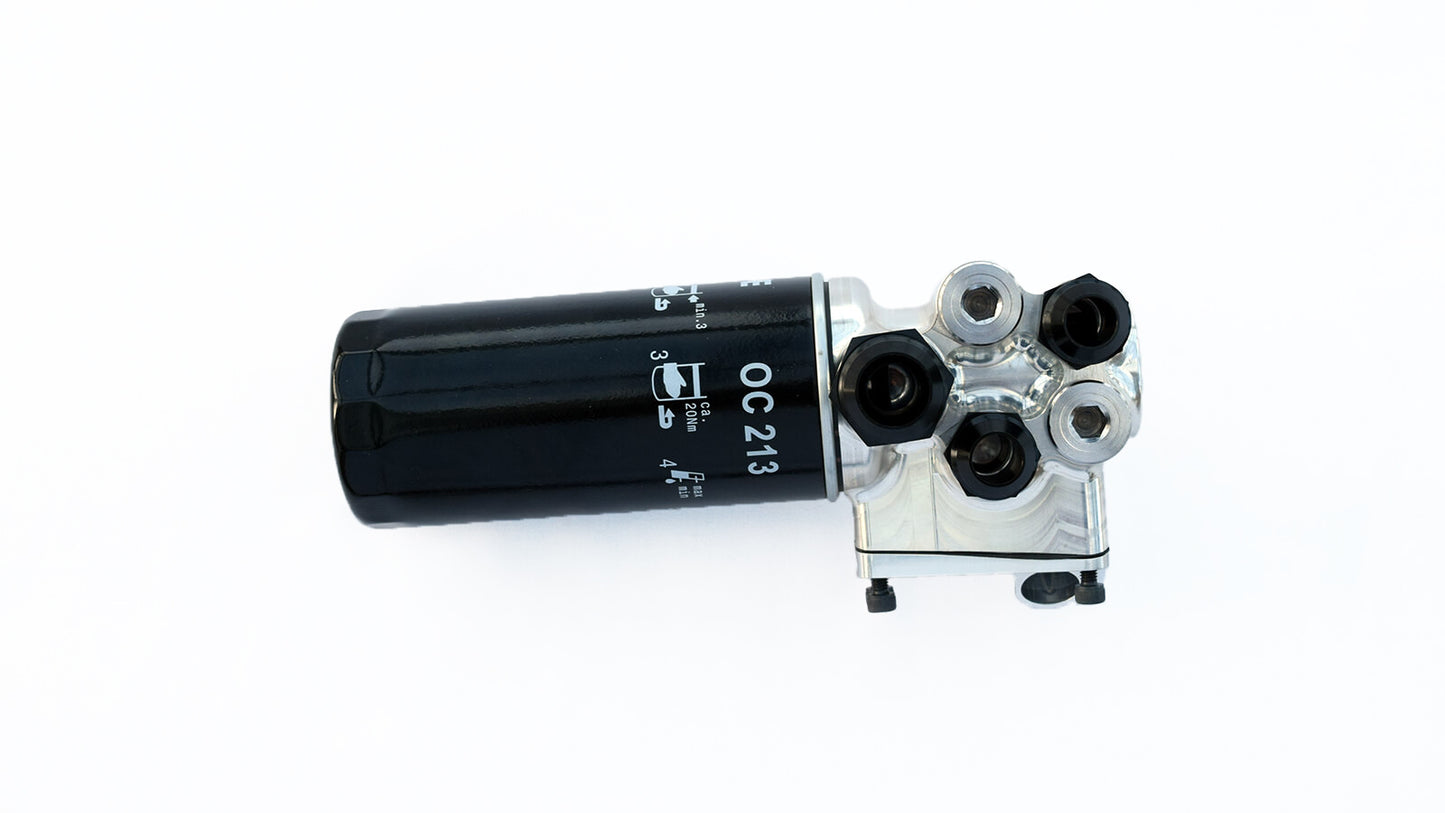

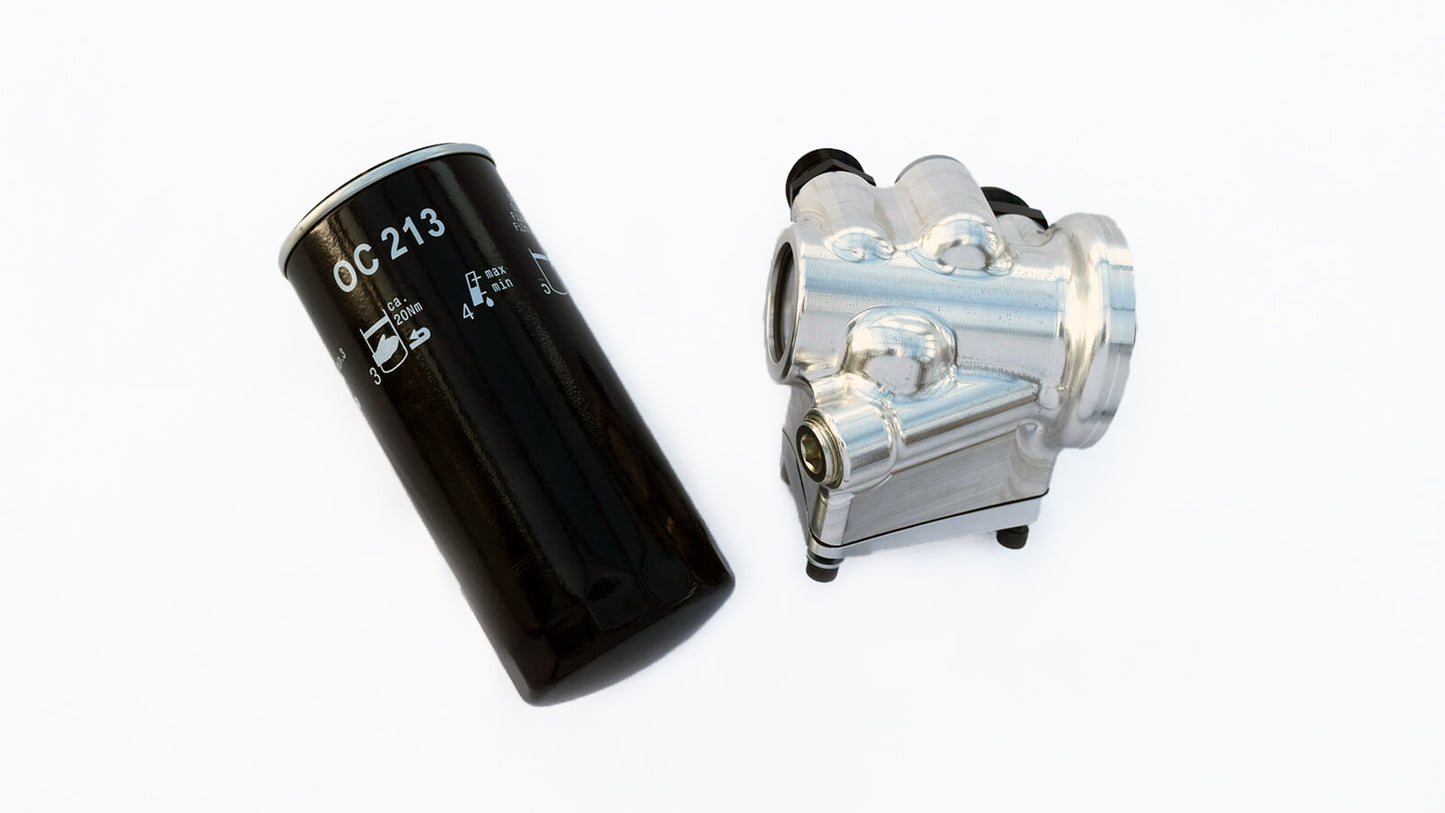

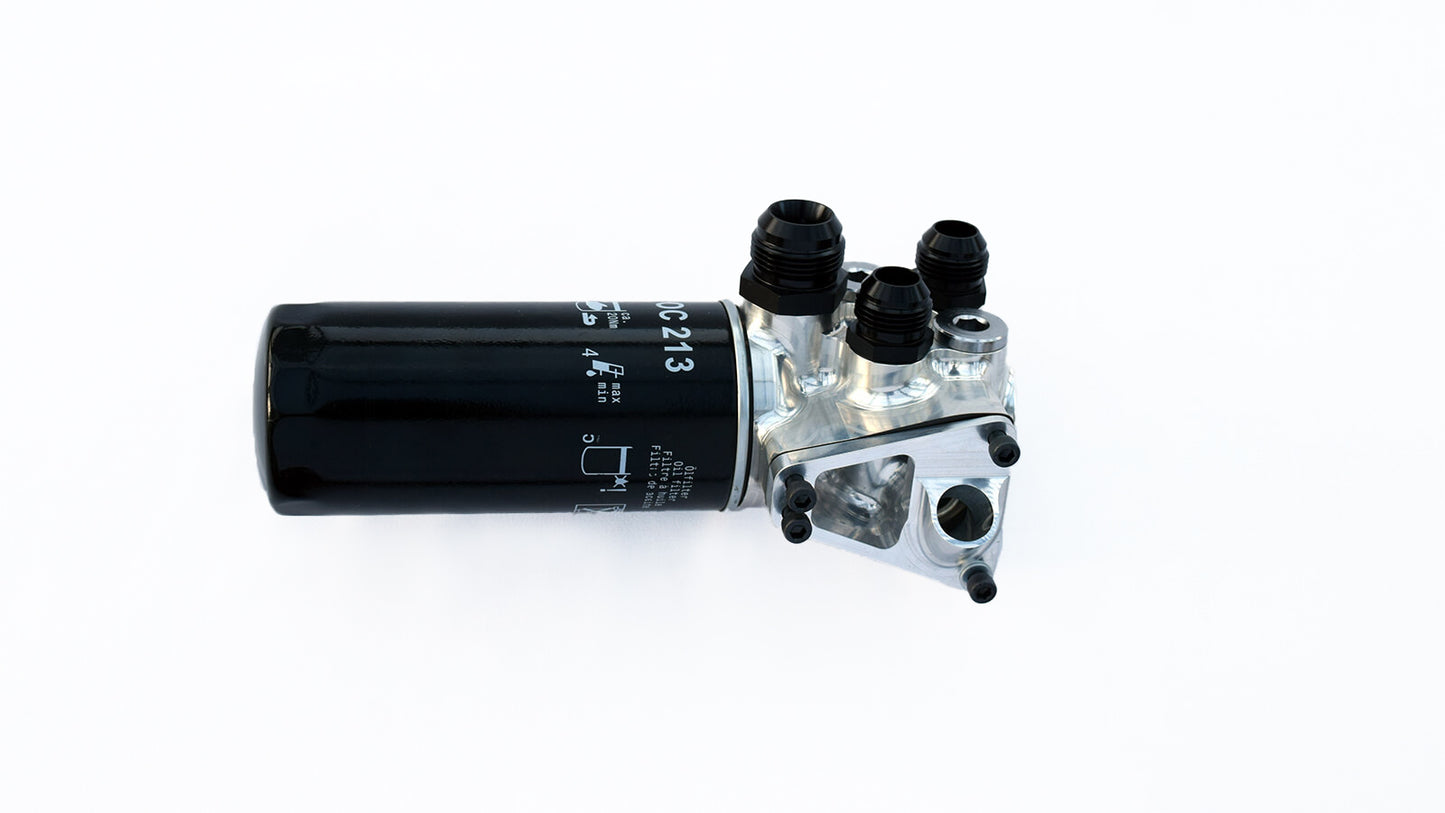

Integrated Thermostat & Filter Console with Dual Cooler Output

Product Overview:

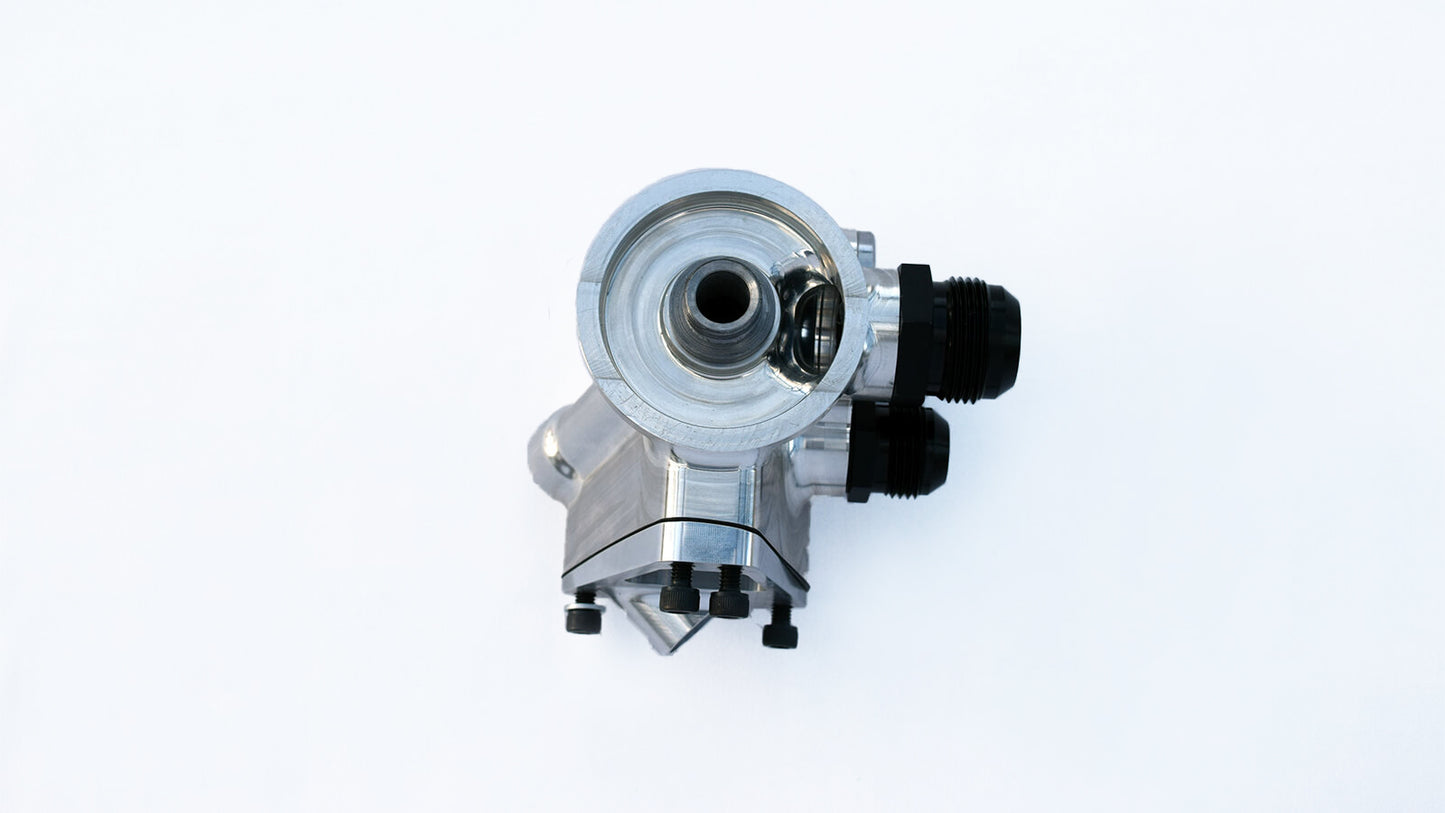

Crafted from a single piece of billet 6061 T6 aluminum, this component revolutionizes conventional dry sump systems by consolidating multiple functions into one integrated unit, presenting the concept of a unified dry sump system.

Key Functions:

• Oil Circulation: Oil enters through the lower port, filtering through and proceeding to the thermostat before distribution to one or two coolers (car-dependent) prior to entry into the Mocal DST7 (14.4L) tank. Installation onto the tank requires minor modifications as per provided instructions.

Benefits:

• Reduced Components: Streamlining the system minimizes scattered components, resulting in a lighter, more compact setup and reduced pressure losses.
• Pressure Relief Valve: Includes a pressure relief valve to prevent buildup during cold starts or thermostat position changes.

Additional Information:

• YouTube References: Refer to YouTube episodes "All In One - Frunk mounted oil tank" and "Cool runnings - Design and install of twin coolers" for detailed insights on this product's functionality and installation.

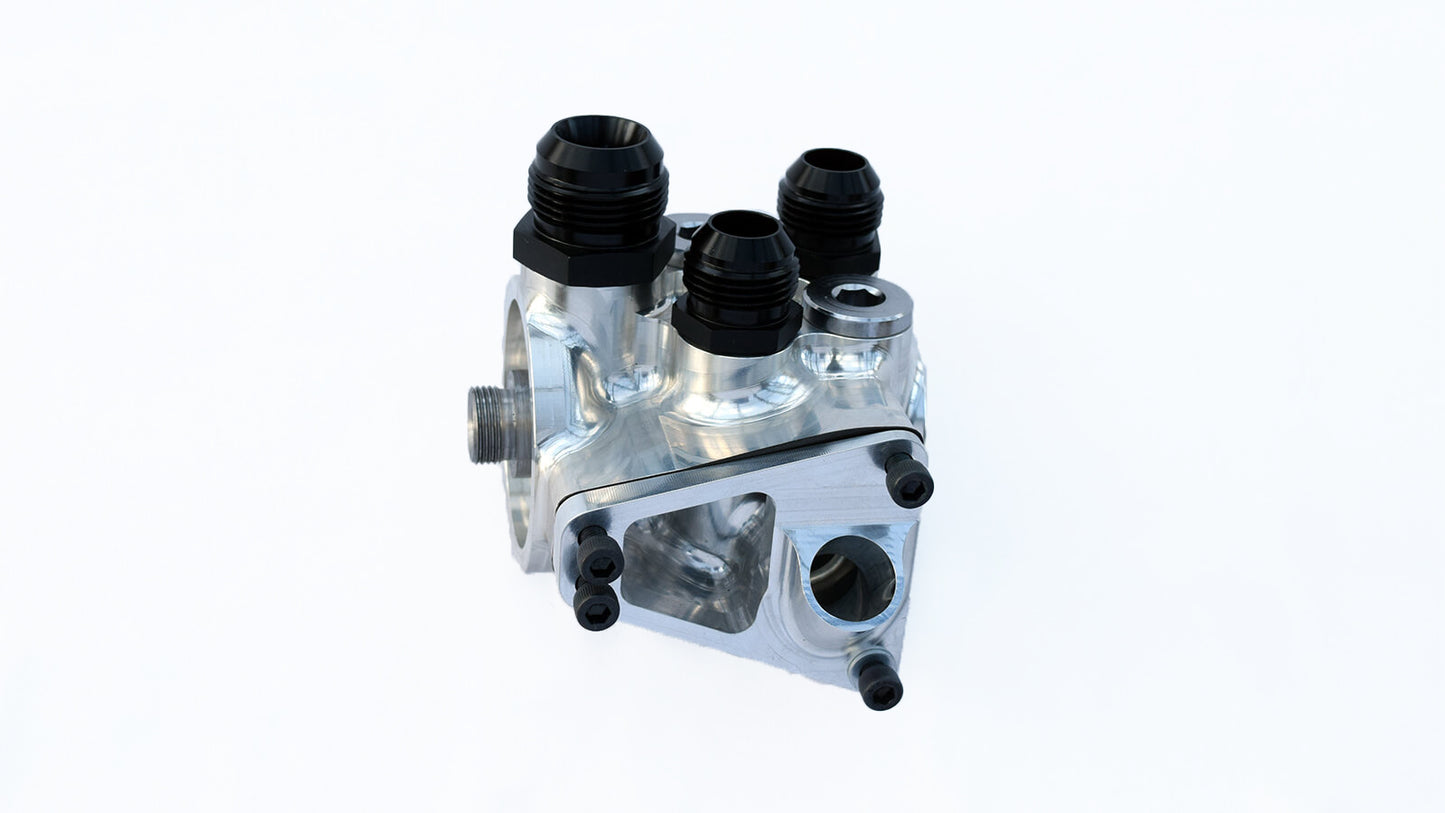

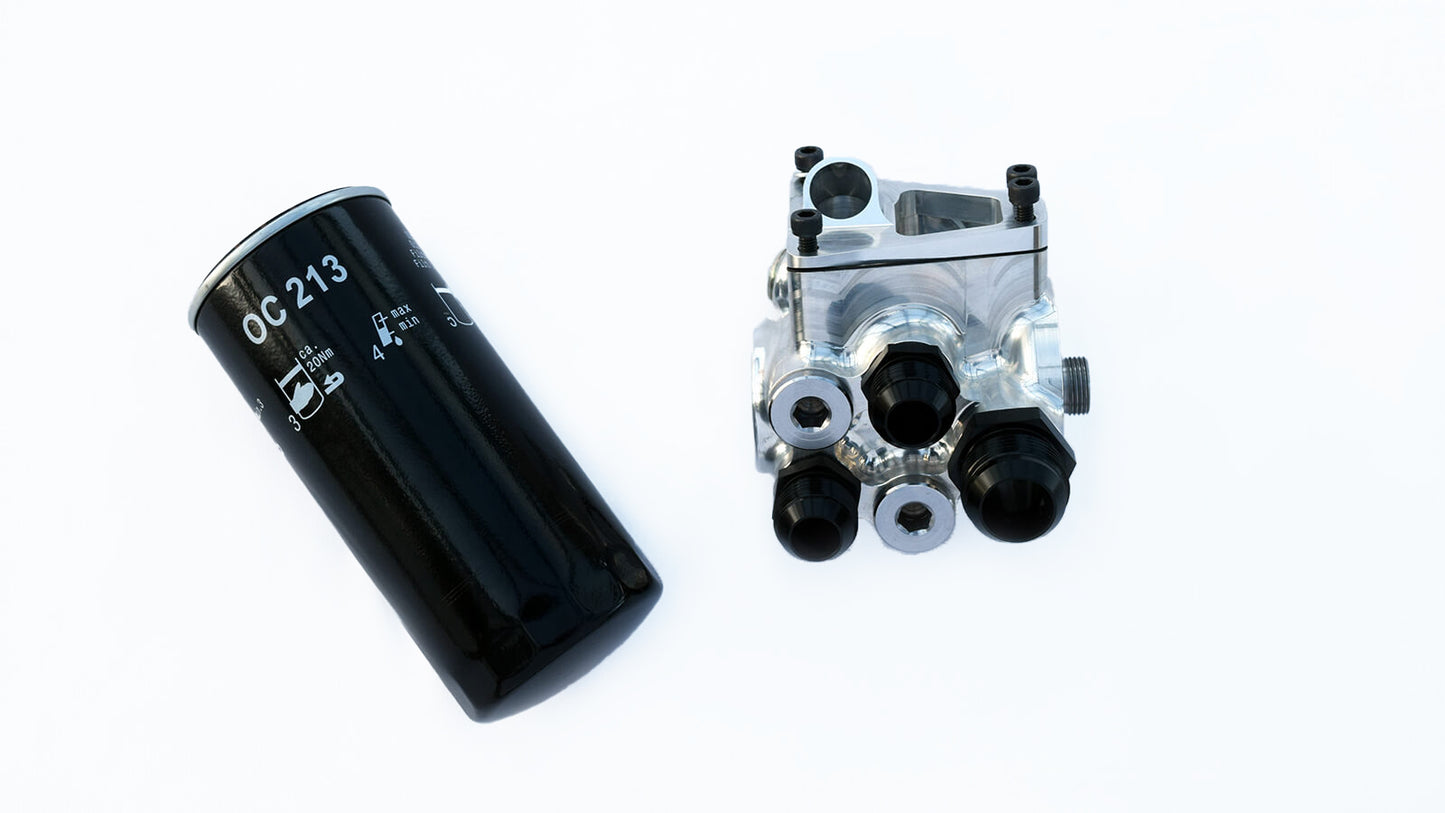

• Port Specifications: Inlet port fitted with AN16 or AN12 adapter, outlet ports accommodate either 4x AN10 or 2x AN12 (with 2 ports plugged). The internal backing plate and the gasket seal towards the outside of the tank is delivered loose.

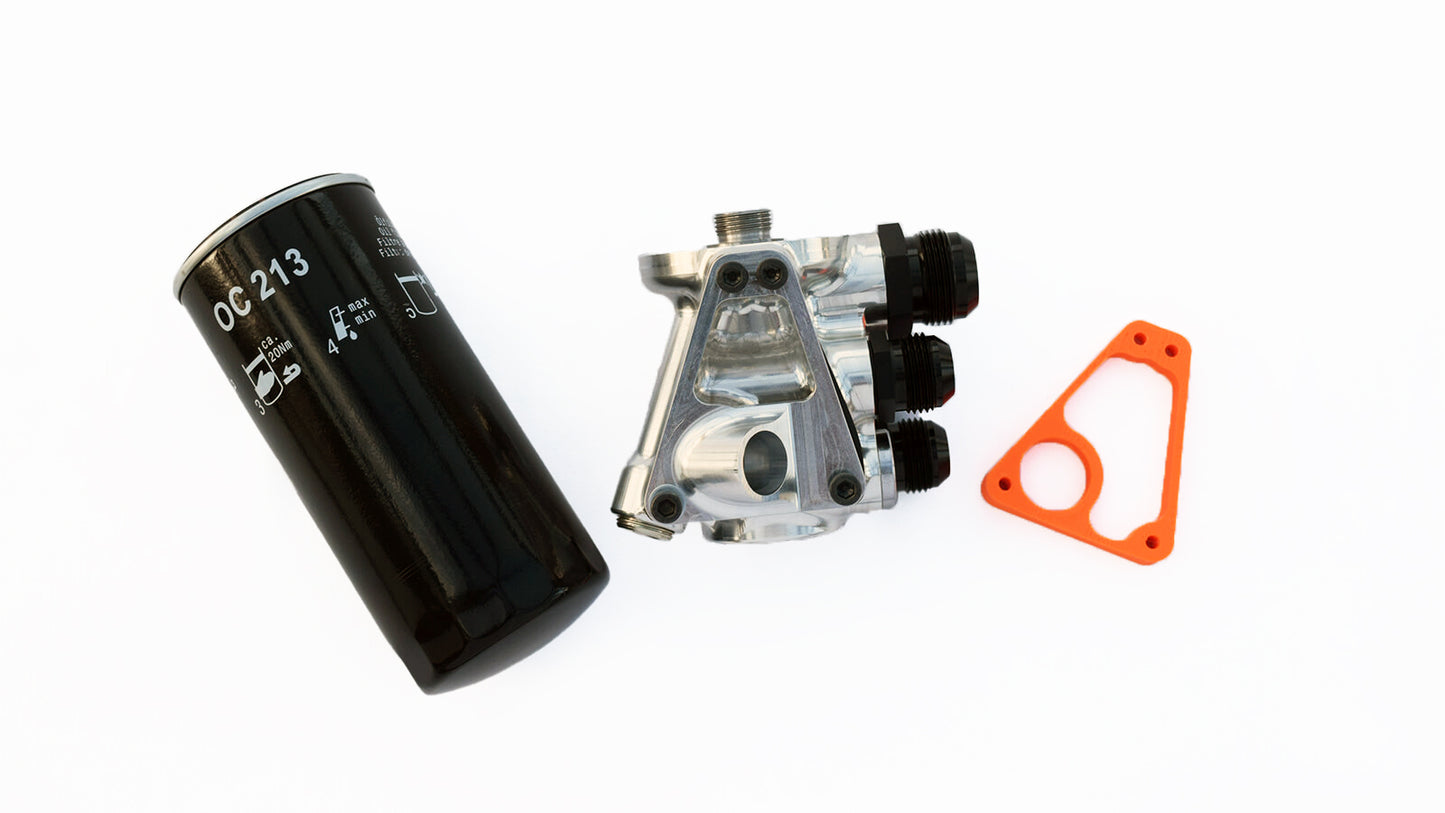

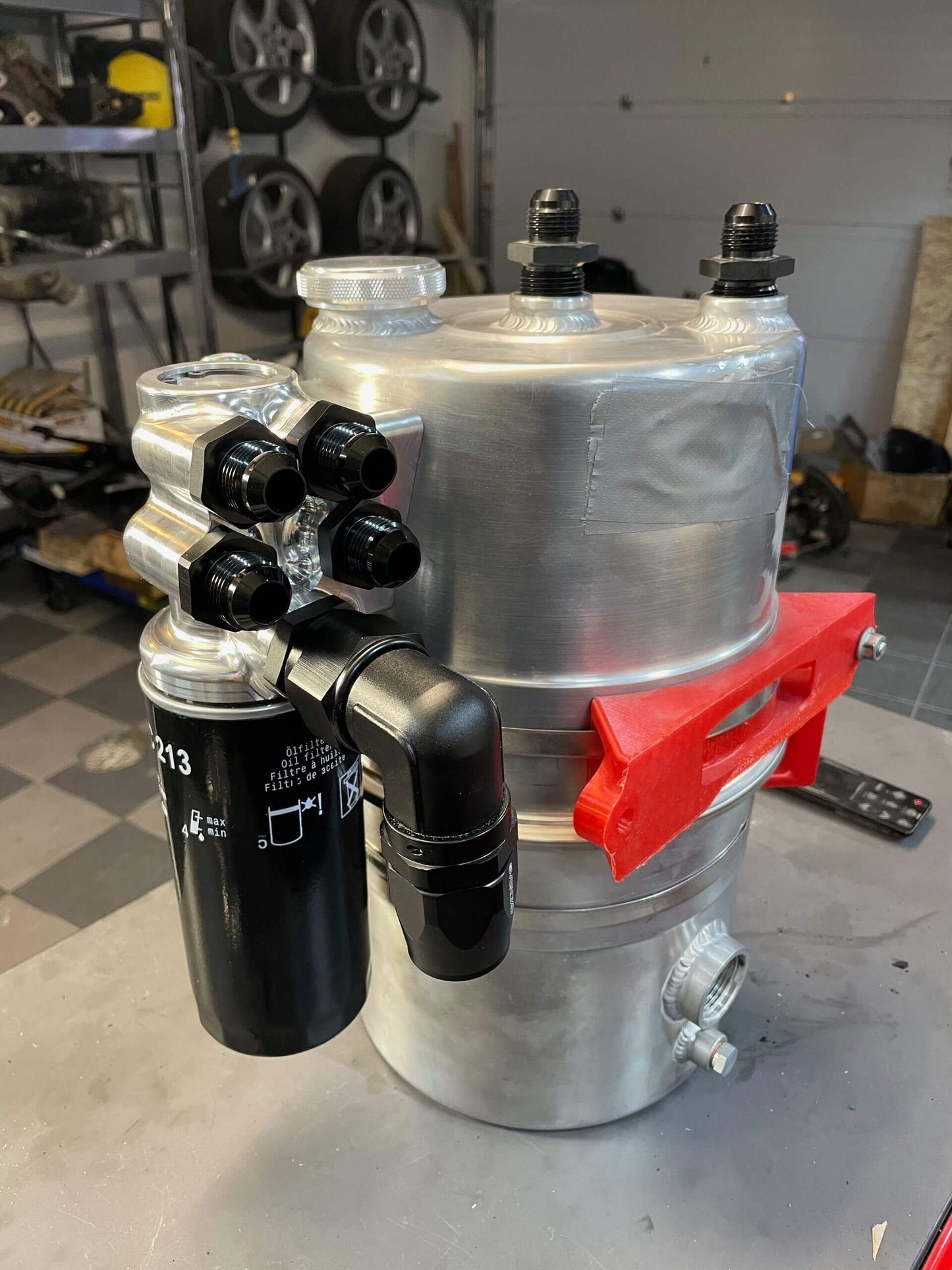

• Installation Assistance: A drilling/cutout template (orange part in the image) is supplied for easy assembly onto the Mocal tank.

Important Notes:

• Additional Requirements: Mocal tank and Porsche 993 oil filter are not included and need to be purchased separately.
• Made-to-Order Product: Contact info@islandworks.one for orders, as the product is exclusively made to order.
