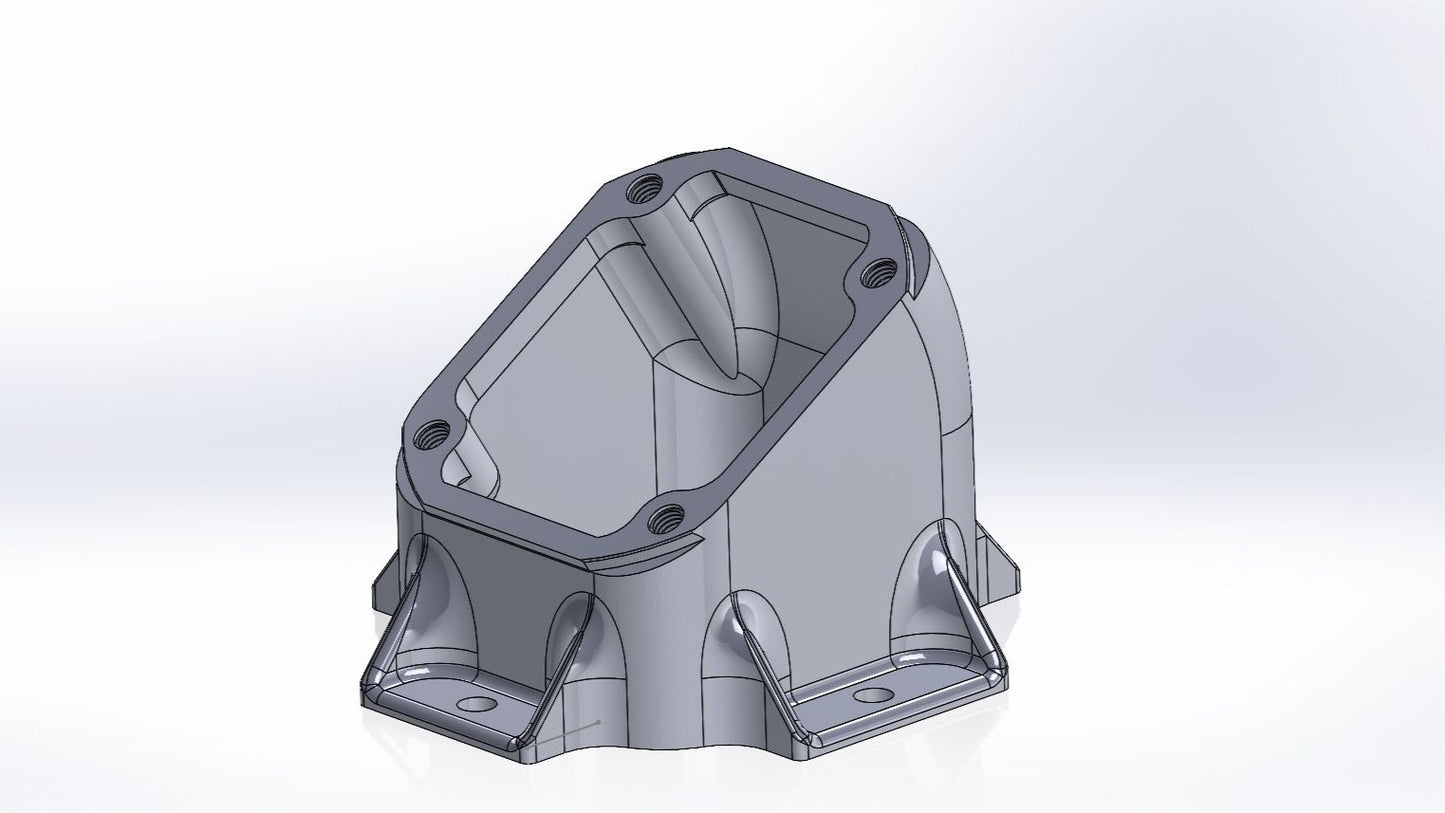

3D File: Cylinder Head Jig

Product Overview:

This specialized jig facilitates the mounting of the cylinder head at an optimal angle, easing the removal of valve guides for efficient maintenance.

Key Recommendations:

• Optimal Printing: Constructed in PLA with a high infill percentage for enhanced stability and reliability during use.
• Adjustable Angle: Verify and adjust the angle as needed; utilize shims below for precise adjustments if required.
• Specific Application: Designed for the exhaust side only; note that the intake side requires a different angle for optimal functionality.

Important Angle Details:

• Angle Configuration: Set at 31.5 degrees, ensuring an optimal position for valve guide removal.
